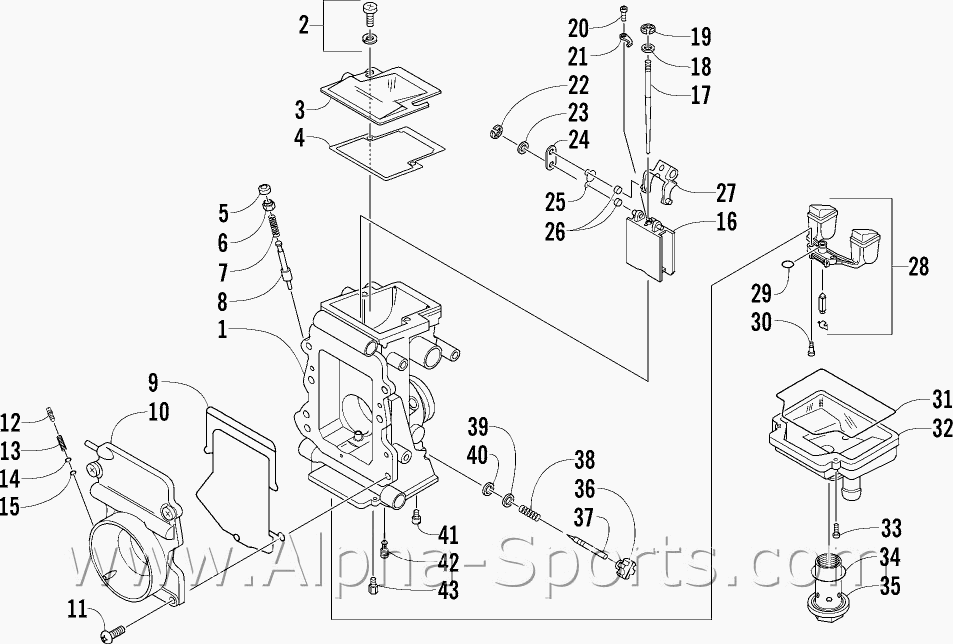

| 1 | N/A |
| Body, Mixing-Right
* 1 Body, Mixing-Left
|
| 2 | 6505-591 |
| Screw Assembly
|
| 3 | 6506-142 |
| Cap, Top
|
| 4 | 6506-034 |
| Gasket
|
| 5 | 6506-068 |
| Cap, Starter Plunger
|
| 6 | 6506-069 |
| Guide Holder
|
| 7 | 6506-070 |
| Spring, Starter Plunger
|
| 8 | 6506-071 |
| Starter Plunger
|
| 9 | 6506-209 |
| Gasket
|
| 10 | 6506-345 |
| Funnel Assembly
|
| 11 | 6505-980 |
| Screw
|
| 12 | 6506-220 |
| Screw, Air
|
| 13 | 6506-217 |
| Spring
|
| 14 | 6506-218 |
| Washer
|
| 15 | 4505-011 |
| O-Ring
|
| 16 | 6506-120 |
| Valve, Throttle CA 3.0
|
| 17 | 6506-384 |
| Jet Needle 9EFJ1-60-4
|
| 18 | 6505-552 |
| Washer, E-Clip
|
| 19 | 6505-628 |
| E-Clip
|
| 20 | 6506-054 |
| Screw, Retaining Plate
|
| 21 | 6506-055 |
| Plate, Jet Needle Retaining
|
| 22 | 6506-051 |
| E-Clip
|
| 23 | 6506-052 |
| Washer
|
| 24 | 6506-039 |
| Plate
|
| 25 | 6506-040 |
| Clip
|
| 26 | 6506-053 |
| Bushing, Clip
|
| 27 | 6506-047 |
| Lever Assembly-Right
|
| 27 | 6506-043 |
| Lever Assembly-Left
|
| 28 | 6506-144 |
| Float Assembly 1.8
|
| 29 | 6506-100 |
| O-Ring
|
| 30 | 6506-037 |
| Screw, Float Arm
|
| 31 | 6506-038 |
| Gasket, Float Chamber
|
| 32 | 6506-036 |
| Chamber, Float-Assembly
|
| 33 | 6506-072 |
| Screw
|
| 34 | 6505-185 |
| O-Ring, Drain Plug
|
| 35 | 6506-032 |
| Plug, Drain
|
| 36 | 6506-076 |
| Cap, Fuel Mixture Screw
|
| 37 | 6506-145 |
| Screw, Fuel Mixture 2.0
|
| 38 | 6506-079 |
| Spring, Fuel Mixture Screw
|
| 39 | 6506-078 |
| Washer, Fuel Mixture Screw
|
| 40 | 6506-080 |
| Washer, Rubber
|
| 41 | 6506-101 |
| Starter Jet135
|
| 42 | 6506-346 |
| Pilot Jet35
|
| 43 | 6506-378 |
| Main Jet 510N**
|
