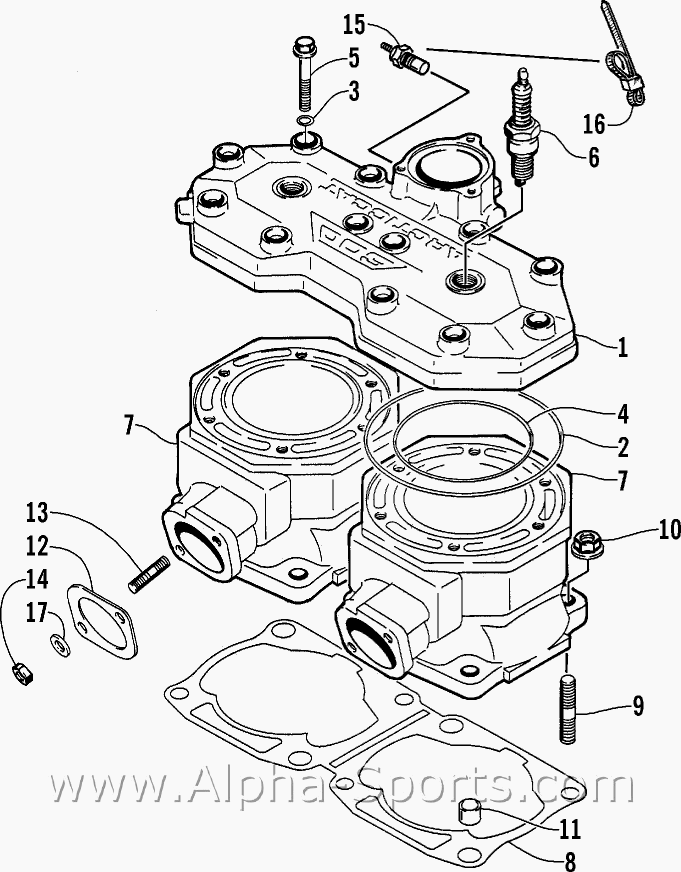

| 1 | 3005-480 |
| Head, Cylinder | |
| 2 | 3003-765 |
| O-Ring, Head-Outer | |
| 3 | 3003-227 |
| O-Ring, Head Bolt | |
| 4 | 3004-080 |
| O-Ring, Head-Inner | |
| 5 | 3004-459 |
| Screw, Cap | |
| 6 | 0217-709 |
| Plug, Spark (BR9EYA) | |
| 7 | 3005-212 |
| Cylinder | |
| 8 | 3005-245 |
| Gasket, Cylinder | |
| 9 | 3005-207 |
| Bolt, Stud-Cylinder | |
| 10 | 3004-491 |
| Nut | |
| 11 | 3004-975 |
| Pin, Dowel | |
| 12 | 3003-503 |
| Gasket, Exhaust | |
| 13 | 3004-279 |
| Bolt, Stud | |
| 14 | 3004-334 |
| Nut | |
| 15 | 0620-210 |
| Sensor, Heat | |
| 16 | 0623-285 |
| Tie, Cable-Double Loop | |
| 17 | 3004-280 |
| Washer, Lock |
