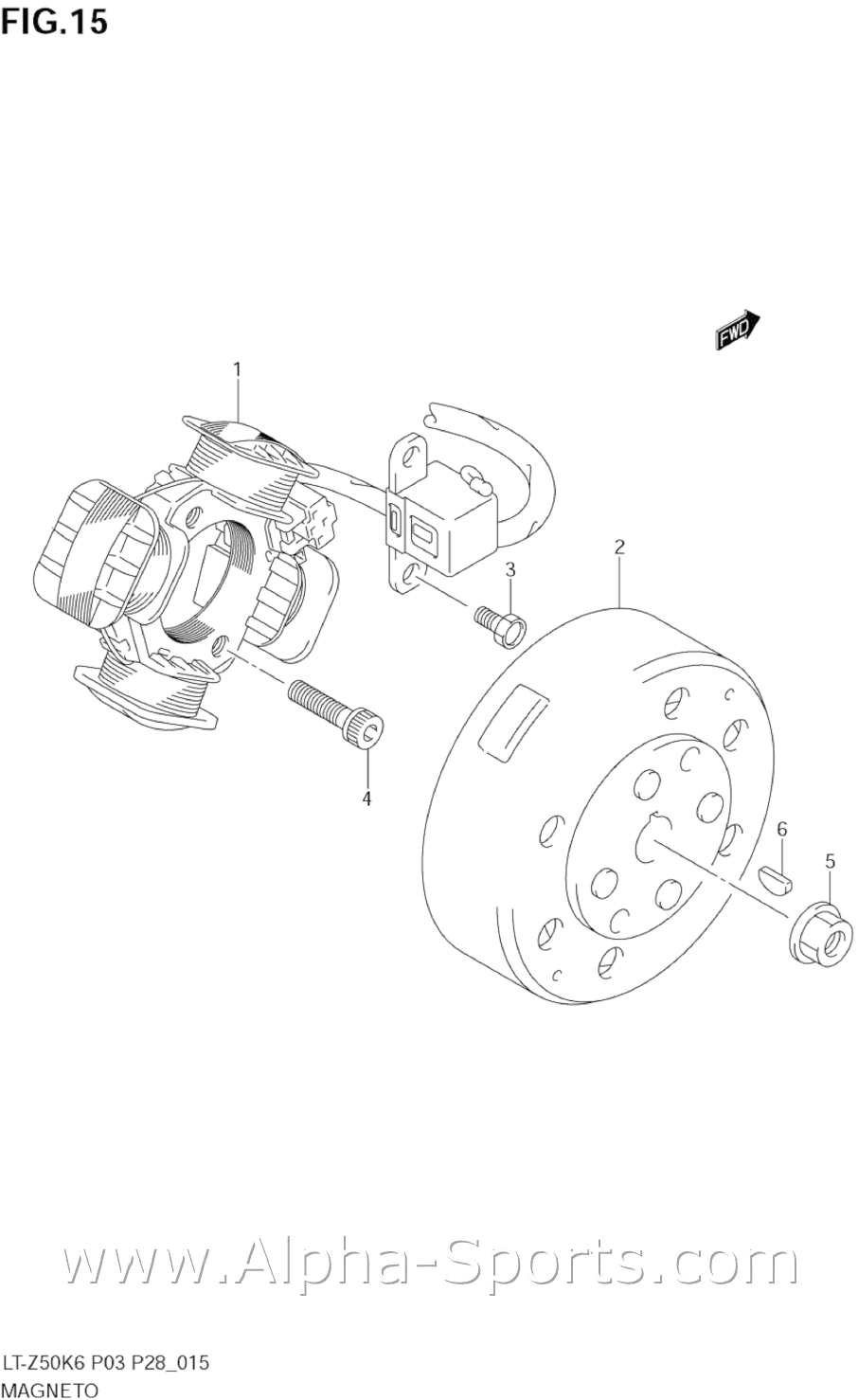

2006 LT-Z50 - MAGNETO
Scroll Right to see all of the Image.
**Qty Required Notes
132101-43G00
STATOR ASSY, MAGNETO
1
232102-43G00
ROTOR ASSY, MAGNETO
1
309100-05019
BOLT, PULSER COIL (5X10)
2
407130-06253
BOLT, MAGNETO STATOR
2
508316-10103
NUT, MAGNETO ROTOR
1
608341-31039
KEY, MAGNETO ROTOR
1
